Author Topic: Re: Extreme Wildman  (Read 32793 times)
0 Members and 2 Guests are viewing this topic.
Goffa
ARA Member

Offline Offline

Posts: 409


Extreme Wildman on M1297W


« Reply #98 on: March 16, 2011, 11:00:06 PM »

Redundant avbay setup really paid for itself on the K flight.
Inspection after recovery showed that the primary drogue charge didnt go off so backup system saved the day.

Testing showed that cause was a faulty q2g2. thats first q2g2 I've ever seen fail.
i test resistance of each q2g2 before installing...all have been around 3ohms
except this one was 4.2 ohms..but for some reason i still used it...didnt think it would be a problem...it was.
tried it again after the flight on a 9v battery and it still wouldn't ignite

next time any q2g2's over 3 ohms will be used only for lpr launches

I read somewhere that the specs for q2g2 were 2.7 +/- 0.5 ohms
Logged

ARA 126
AARC 16
Level 3
RocketballSA
ARA Member

Offline Offline

Posts: 3801


Fantom on a H170 Sparky


« Reply #99 on: April 02, 2011, 05:46:32 PM »

Good tip there for everyone Goffa.  13
Logged

AARC Secretary/Treasurer 02,  ARA L2 Flight Test Officer

Join the AARC http://www.aarc.australianrocketryclub.com.au/contents/en-us/d1.html

Australian Rocketry For
Goffa
ARA Member

Offline Offline

Posts: 409


Extreme Wildman on M1297W


« Reply #100 on: April 14, 2011, 09:28:02 PM »

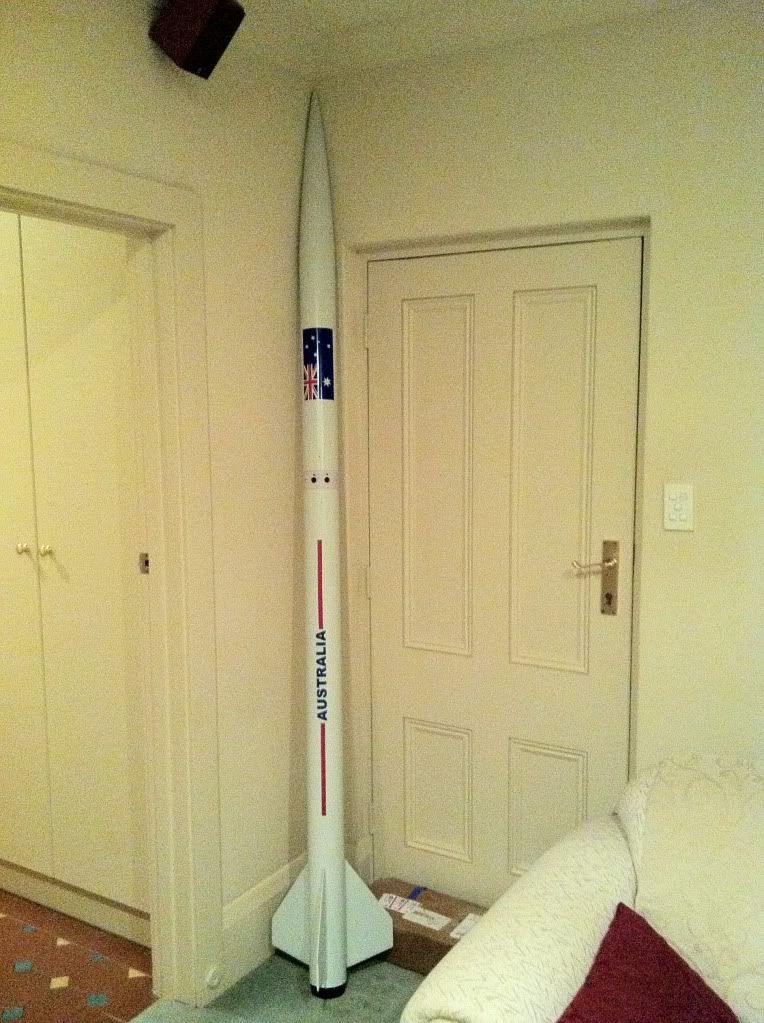

Nervous rocket shivering with fear in the corner...waiting for the big day...



Logged

ARA 126
AARC 16
Level 3
RocketballSA
ARA Member

Offline Offline

Posts: 3801


Fantom on a H170 Sparky


« Reply #101 on: April 14, 2011, 09:36:36 PM »

Looking good Goffa  icon_thumright Gees would not want anyone to open that door up though!  blundecided
Logged

AARC Secretary/Treasurer 02,  ARA L2 Flight Test Officer

Join the AARC http://www.aarc.australianrocketryclub.com.au/contents/en-us/d1.html

Australian Rocketry For
EMiR
ARA Member

Offline Offline

Posts: 1066


Sir L3


WWW
« Reply #102 on: April 14, 2011, 10:46:03 PM »

They are a nice looking rocket, Love you choice in decals!!

what motor you got planned for it?
Logged

Mr F
ARA Member

Offline Offline

Posts: 919


I am your father!


WWW
« Reply #103 on: April 15, 2011, 12:07:26 AM »

Looking good Goffa  icon_thumright Gees would not want anyone to open that door up though!  blundecided

Hehe, with the amount of epoxy on that thing, you're more likely to damage the door I reckon! Tongue
Logged

They call me Flinty... they call me Johnno... they call me Freddy... always the same...
that's not my name... that's not my name... that's not my name... that's not my name...

EP Rocketry section head
ARA #120
L2 and scheming...
WaidmannsHeil7
ARA Member

Offline Offline

Posts: 144


My first mid-power, Aerotech Mustang.


WWW
« Reply #104 on: April 15, 2011, 10:26:59 AM »

Very nice looking rocket.  13
Logged

Vector Force Rocket Club

My blog - http://lonewolfnoble.blogspot.com.au/
wolflair
ARA Member

Offline Offline

Posts: 4357


V2


WWW
« Reply #105 on: April 15, 2011, 06:20:37 PM »

love the aussie art work Goffa  icon_thumright
Logged

Join the Australian Rocketry Association INC the largest model and high power rocketry organisation in Australia

ARA # 007
ARA Level 3

WRL Rocketry
Australian Aerotech Dealer
Australian Rocketry Fo
hotspot
ARA Member

Offline Offline

Posts: 1023


« Reply #106 on: April 15, 2011, 07:24:22 PM »

Go baby go good work.
Logged
Goffa
ARA Member

Offline Offline

Posts: 409


Extreme Wildman on M1297W


« Reply #107 on: April 15, 2011, 08:37:10 PM »

what motor you got planned for it?

dunno...let me go and have a look in the ammo box....
I'm back..found an old motor in the bottom of the box...seems to fit ok
let me wipe off the dust and see what it says...m1297w
might give that a go...


Logged

ARA 126
AARC 16
Level 3
Mr F
ARA Member

Offline Offline

Posts: 919


I am your father!


WWW
« Reply #108 on: April 15, 2011, 10:00:01 PM »

 icon_thumleft AND THE CROWD GOES WILD!!!!  icon_thumleft

All the best for Sunday goffa... Can't wait for SA to have it's first L3
Logged

They call me Flinty... they call me Johnno... they call me Freddy... always the same...
that's not my name... that's not my name... that's not my name... that's not my name...

EP Rocketry section head
ARA #120
L2 and scheming...
EMiR
ARA Member

Offline Offline

Posts: 1066


Sir L3


WWW
« Reply #109 on: April 15, 2011, 10:28:40 PM »

sorry prob should have read from the start, L3 attempt. very good!

Best of luck, I hope the sky is blue and there is no wind.



Logged

Mr F
ARA Member

Offline Offline

Posts: 919


I am your father!


WWW
« Reply #110 on: April 15, 2011, 10:33:01 PM »

Haha I wouldn't apologise Emir... Goffa has kept the final date pretty quiet up until just then Wink
Logged

They call me Flinty... they call me Johnno... they call me Freddy... always the same...
that's not my name... that's not my name... that's not my name... that's not my name...

EP Rocketry section head
ARA #120
L2 and scheming...
Goffa
ARA Member

Offline Offline

Posts: 409


Extreme Wildman on M1297W


« Reply #111 on: April 18, 2011, 10:15:29 PM »

Well I better finish this thread off with a report on the L3 cert flight.

Technical summary:
Launch Date: Sunday 17th April 2011 at Karoonda, South Australia
Rocket: Extreme Wildman
Motor: M1297W
Weight: 7.6kg + motor 4.6kg = total 12.2kg
Max Acceleration: 11Gees (raven accelerometer)
Max velocity mach 0.75 (raven accelerometer)
Apogee: 11,598ft (raven baro). 11,428ft (rrc2)
Main: 1700ft
Range: 900m (gps)
Total flight time 210 secs (raven)
Damage: nil
All primary and backup eject charges fired.


Personal Report
The big day arrives...a perfect day for rockets: clear and calm!
Lots of family turn up for the big day...hard to find time for careful preparation
Huge thanks to FTO's RBSA and MickHPR who babysit me thru the day...arriving ultra early to setup a special prep tent area away from spectators

Finally the big moment... 10 months of dreaming and scheming all comes down to the push of a button!
Having to go back 150m made everything seem even more serious and nerve-wracking!
Suddenly all goes very quiet...
Last stupid thought before I push the button "wonder if i have forgotten something obvious?"

Don't remember much about the actual flight...must have gone into shock!
Do remember seeing movement, smoke and flame on the pad but hearing no noise...eerie!
Until realise that was because so far away from pad.
Wow! power of an M is spectacular!!! Roars and roars!
Then trailing smoke goes on upwards for ever.
Smoke puff then another..drogue is out.
Now for the long wait...finally 2 more puffs...main is out.
Drifting the wrong way...towards the farmhouse!
Lands much further away than expected...winds must be different up there...almost calm at ground level.
Now to find it...wild fast ride on back of ute over back roads and paddocks...
phew! spotters have already found it!
FTOs down to business...serious and grave...a long inspection...
"looks like a pass to me...whaddya think?"
"mmm...'fraid so"

Logged

ARA 126
AARC 16
Level 3
