Author Topic: MickG and Mr hybrid two stage hybrid rocket  (Read 19314 times)
0 Members and 1 Guest are viewing this topic.
wolflair
ARA Member

Offline Offline

Posts: 4357


V2


WWW
« Reply #14 on: June 19, 2011, 10:27:09 PM »

love your work guys cant wait to see this project up and close in a few weeks time  blcool
Logged

Join the Australian Rocketry Association INC the largest model and high power rocketry organisation in Australia

ARA # 007
ARA Level 3

WRL Rocketry
Australian Aerotech Dealer
Australian Rocketry Fo
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #15 on: June 21, 2011, 06:13:26 PM »

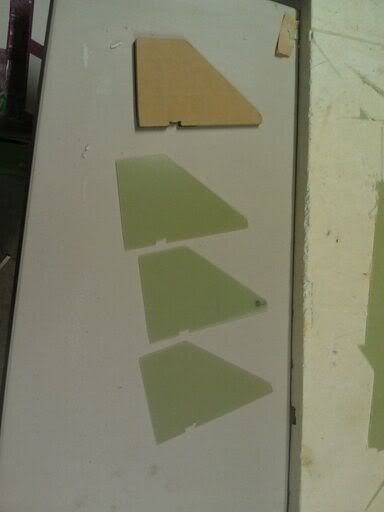

Here are the second stage fins. Cut out with the trimmer router and template
Logged
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #16 on: June 24, 2011, 06:37:38 PM »

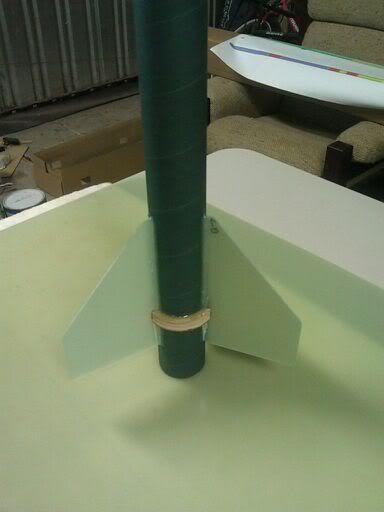

Hi every one. Here is a photo of the second stage motor mount with fins attached. I did this the same way as the booster fins.
Logged
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #17 on: July 06, 2011, 10:28:39 PM »

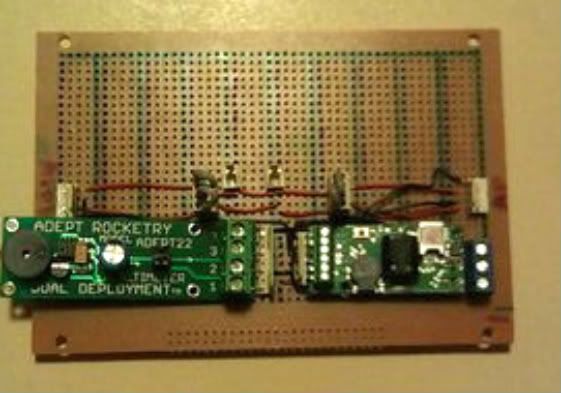

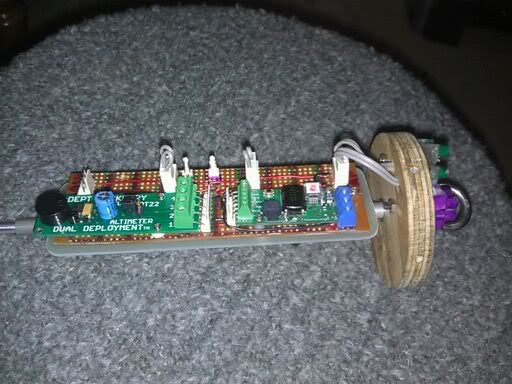

Here are the electronics, i am using a RAVEN2 plus an ADEPT22 for backup.
I have mounted them on a bread board so that i can use plugs to connect them easily to the wiring loom in the rocket.
i will cut the board down to size once i have finalised the wiring, it should be able to fit into my 54mm rocket as well.
Logged
EMiR
ARA Member

Offline Offline

Posts: 1066


Sir L3


WWW
« Reply #18 on: July 06, 2011, 10:41:53 PM »

So how are you guys planning on filling you top tank, and holding it until air start?
Logged

Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #19 on: July 07, 2011, 10:07:02 AM »

The second stage motor is the aerotech hybrid it's tank is pre-filled  and a pro valve is used
Logged
EMiR
ARA Member

Offline Offline

Posts: 1066


Sir L3


WWW
« Reply #20 on: July 07, 2011, 11:09:42 PM »

yer thats the way to go.

Let me know when the launch is planned, I'll fly down for it!!

or if you want, you guys can fly up here, and we'll do a big hybrid launch weekend at ARG site.

As I'm planning on a M hybrid in a few months to around the ~16000' mark..

October is a 2 day event for ARG

Logged

Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #21 on: July 09, 2011, 02:27:09 PM »

Hi here are some more photos of the second stage, here i am cutting the notches in the centre rings to fit the cable duct for the ignition and separation wiring.


Here is the staging coupler also with a hole drilled in the fibreglass centre ring also for the cable duct.


Here it is assembled ready for gluing, notice the aluminium tube this will be the cable duct it will run right up into the avionics bay.

Logged
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #22 on: July 12, 2011, 07:13:41 PM »

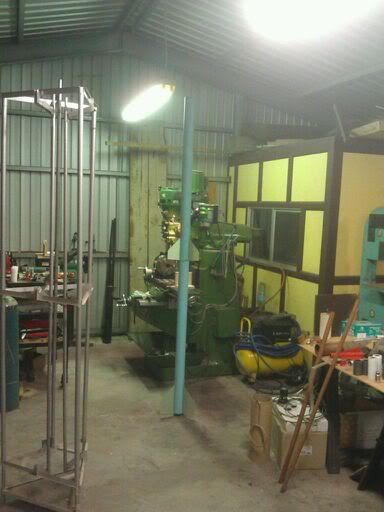

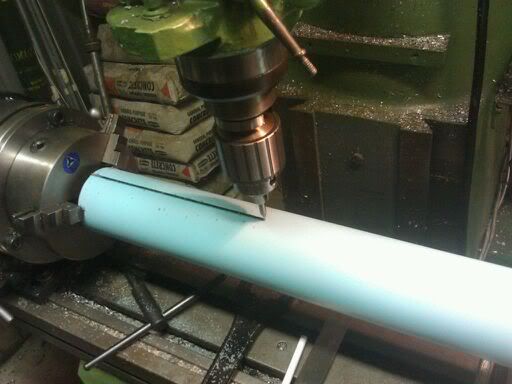

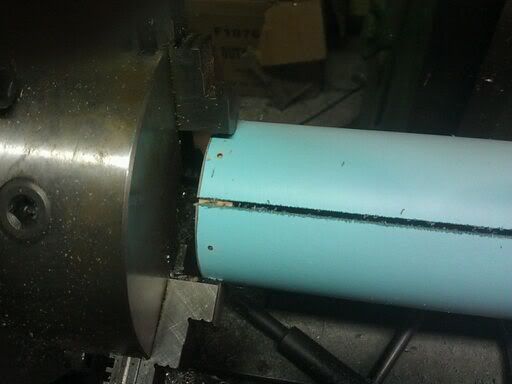

Hi every one the next few photos are of me slotting the air frame, drilling the screw holes and test fitting the booster and the second stage together.
MikcG has done a fantastic job of preparing the blue tube air frame ready for painting.



 "It is going to be tall"
Logged
RocketballSA
ARA Member

Offline Offline

Posts: 3801


Fantom on a H170 Sparky


« Reply #23 on: July 14, 2011, 09:14:49 AM »

that is tall  blcool
Logged

AARC Secretary/Treasurer 02,  ARA L2 Flight Test Officer

Join the AARC http://www.aarc.australianrocketryclub.com.au/contents/en-us/d1.html

Australian Rocketry For
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #24 on: July 21, 2011, 04:57:58 PM »

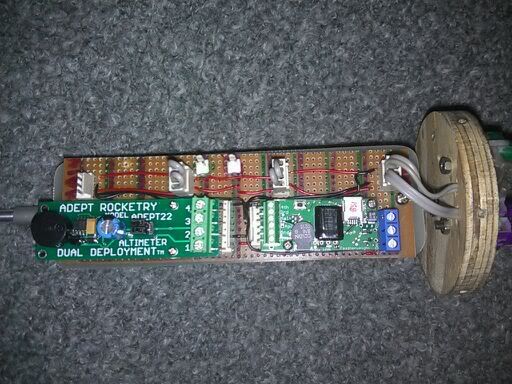

here are a couple of photos of the electronics that we will use , i test flew them on the weekend in my scratch built 54mm hybrid rocket.



Logged
Dogzilla
ARA Member

Offline Offline

Posts: 383


« Reply #25 on: July 21, 2011, 05:51:13 PM »

Smart idea having that wiring board....dual deploy electronics always has tons of wires In my setups - that keeps everything nice and tidy

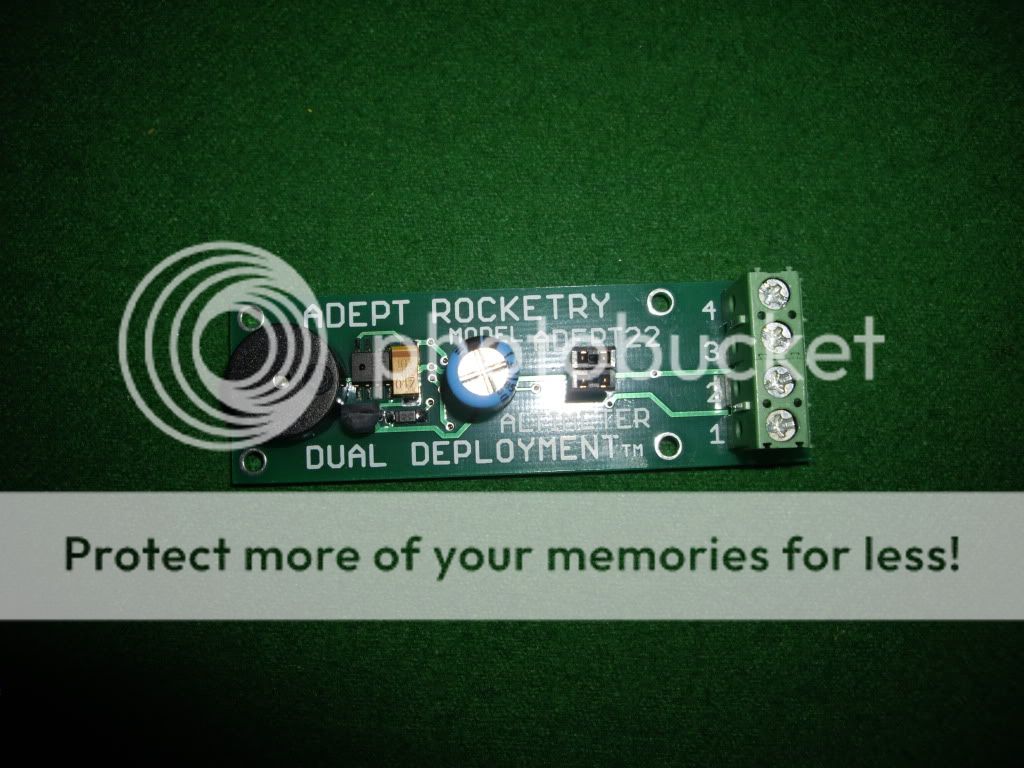

Just got 2 x adept 22's keen to see how they perform.
Logged
RocketballSA
ARA Member

Offline Offline

Posts: 3801


Fantom on a H170 Sparky


« Reply #26 on: July 22, 2011, 02:52:18 PM »

Just got 2 x adept 22's keen to see how they perform.


Have one of those to which look forward to trying  icon_thumleft

Logged

AARC Secretary/Treasurer 02,  ARA L2 Flight Test Officer

Join the AARC http://www.aarc.australianrocketryclub.com.au/contents/en-us/d1.html

Australian Rocketry For
Dogzilla
ARA Member

Offline Offline

Posts: 383


« Reply #27 on: July 22, 2011, 08:27:28 PM »

thats one big altimeter

Logged
