Our 2 stage hybrid.


« Reply #28 on: July 26, 2011, 10:30:49 PM »

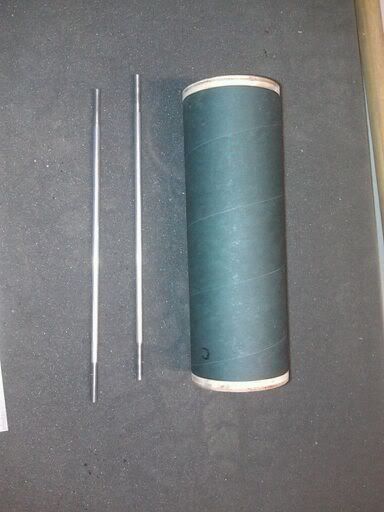

Here is the electronics bay. I have threaded the ends of two pieces of 6mm aluminium rod for the anchor bolts.

Logged
wolflair
ARA Member

Offline Offline

Posts: 4357


V2


WWW
« Reply #29 on: July 26, 2011, 11:12:25 PM »

looking good guys after having a very close look at this project in person a week ago i believe it will be up there as one of the best flights for the SA members.  blcool blcool
Logged

Join the Australian Rocketry Association INC the largest model and high power rocketry organisation in Australia

ARA # 007
ARA Level 3

WRL Rocketry
Australian Aerotech Dealer
Australian Rocketry Fo
Pyrogrom
ARA Member

Offline Offline

Posts: 194



« Reply #30 on: August 07, 2011, 01:41:50 PM »

 13 Thats killer  looking forward to it !!!
Logged

Wink I will enjoy my life and the directions i have chosen  Wink

 AARC # 4
 ARA #  19
AARC  President

Level 2 FTO
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #31 on: August 23, 2011, 05:31:32 PM »

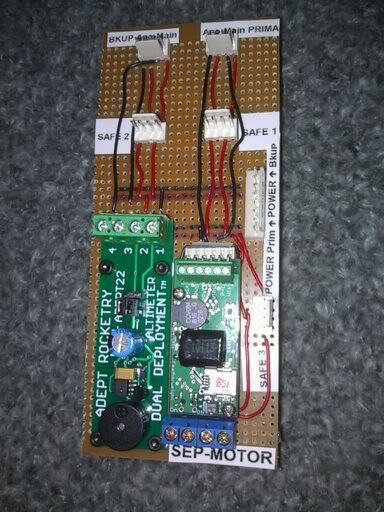

okay guys i have finalised the electronics board for the two stage rocket here are a few photos. I am putting safety plugs on all 6 e-match circuits, they include apogee and apogee backup, main and main backup, and booster separation and second stage motor ignition.

I don't normally glue the mounting tubes directly to the electronics board but due to lack of space i had no choice with this one, the plugs just got two close to the airframe.
Logged
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #32 on: August 23, 2011, 06:15:55 PM »

Here is one more photo this one is with all the connections labelled
Logged
Mr F
ARA Member

Offline Offline

Posts: 919


I am your father!


WWW
« Reply #33 on: August 23, 2011, 09:56:01 PM »

Haha the anticipation builds!

How far away is this project from completion d'you reckon? September/October?
Logged

They call me Flinty... they call me Johnno... they call me Freddy... always the same...
that's not my name... that's not my name... that's not my name... that's not my name...

EP Rocketry section head
ARA #120
L2 and scheming...
Goffa
ARA Member

Offline Offline

Posts: 409


Extreme Wildman on M1297W


« Reply #34 on: August 24, 2011, 02:57:13 PM »

Damm thats a nicely laid out electronics board!
puts my rats and mice boards to shame!
btw...where do the batteries go?
Logged

ARA 126
AARC 16
Level 3
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #35 on: August 24, 2011, 11:22:14 PM »

I plan to mount the battery on the under side of the loose bulk head. it will also serve to hold the electronics tray down in position with foam in between the battery and the tray.
Logged
RocketballSA
ARA Member

Offline Offline

Posts: 3801


Fantom on a H170 Sparky


« Reply #36 on: August 28, 2011, 09:52:57 AM »

Looking forward to this.  great
Logged

AARC Secretary/Treasurer 02,  ARA L2 Flight Test Officer

Join the AARC http://www.aarc.australianrocketryclub.com.au/contents/en-us/d1.html

Australian Rocketry For
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #37 on: August 28, 2011, 04:35:30 PM »

here are some photos of the av-bay nearly finished just need to do a bit more wiring and mount the battery also need to bog up around the nuts on the safe plugs, they will almost be 100% flush with  the airframe when finished.


Logged
wolflair
ARA Member

Offline Offline

Posts: 4357


V2


WWW
« Reply #38 on: August 28, 2011, 10:11:38 PM »

very neat Av bay guys you two are some of the best rocketeers in the country thats for sure  blcool
Logged

Join the Australian Rocketry Association INC the largest model and high power rocketry organisation in Australia

ARA # 007
ARA Level 3

WRL Rocketry
Australian Aerotech Dealer
Australian Rocketry Fo
Mr hybrid
ARA Member

Offline Offline

Posts: 93


Our 2 stage hybrid.


« Reply #39 on: September 02, 2011, 03:55:28 PM »

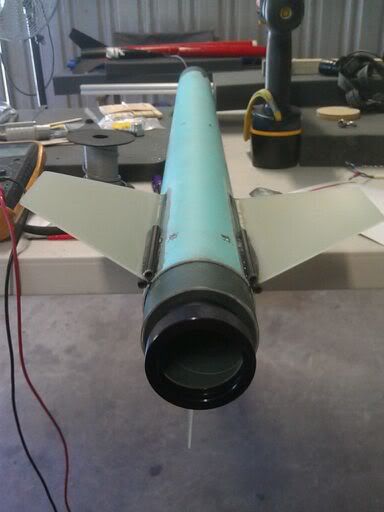

here are a couple of photos of the carbon fibre tubes glued into the fillets on the fins. These are for extra rigidity of the coupling point. There will be 6 carbon fibre rods protruding out the end of the booster section that will precisely line up with these 6 tubes. the rod's will slide in side these tubes to create a very rigged joint between the booster and upper stage, which will also separate easily.
Logged
EMiR
ARA Member

Offline Offline

Posts: 1066


Sir L3


WWW
« Reply #40 on: September 02, 2011, 04:32:20 PM »

I like that idea, very creative


Logged

wolflair
ARA Member

Offline Offline

Posts: 4357


V2


WWW
« Reply #41 on: September 02, 2011, 06:30:21 PM »

I like that idea, very creative


agreed that is a good idea might use that one myself for one of the projects next year
